Box Feeder type "CAU-M"
BRICK WORKS and REFRACTORIES
CEMENT FACTORIES
POTTERY

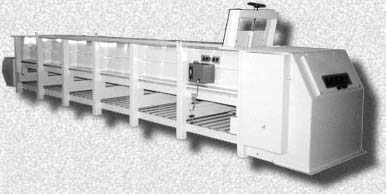

Box Feeder type CAU-M

for return in CAU click here

Technical Data

TYPE
 OUTPUT
ton/h		 POWER BELT/REELS
kW		 WEIGHT
kg		 CHAIN: PITCH-LINK-WHEEL-PIVOT
mm		 A
 B
 C x D
 E
 F
CAU-M 415 15-80 1,5 / 5,5 7300 200 80 x 15 ø110 ø32 2100 5500 1250 x 800 2800 3000
CAU-M 515 15-80 2,2 / 5,5 8600 200 80 x 15 ø110 ø32 2100 6500 1250 x 800 2800 4000
CAU-M 615 15-80 3 / 5,5 9600 200 80 x 15 ø110 ø32 2100 7500 1250 x 800 2800 5000
CAU-M 715 15-80 3 / 5,5 10700 200 80 x 15 ø110 ø32 2100 8500 1250 x 800 2800 6000
CAU-M 815 15-80 4 / 5,5 11800 200 80 x 15 ø110 ø32 2100 9500 1250 x 800 2800 7000

CAU-M 518 20-100 2,2 / 7,5 9800 200 80 x 15 ø110 ø32 2350 6500 1500 x 800 3050 4000
CAU-M 618 20-100 3 / 7,5 11000 200 80 x 15 ø110 ø32 2350 7500 1500 x 800 3050 5000
CAU-M 718 20-100 4 / 7,5 12300 200 80 x 15 ø110 ø32 2350 8500 1500 x 800 3050 6000
CAU-M 818 20-100 4 / 7,5 13600 200 80 x 15 ø110 ø32 2350 9500 1500 x 800 3050 7000

- Longer models can be produced -

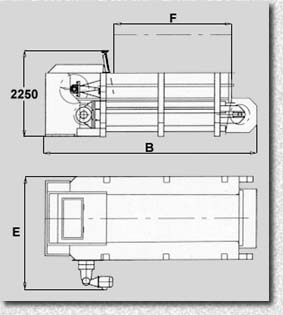

Overall Dimensions

Box Feeder type CAU-M - Dimensions Box Feeder type CAU-M - Dimensions

- The given data are not binding -
