Box Feeder type CAU-N
BRICK WORKS and REFRACTORIES
CEMENT FACTORIES
POTTERY

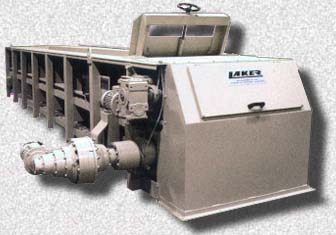

Box Feeder type CAU-N

for return in CAU click here

Technical Data

TYPE
 OUTPUT
ton/h		 POWER BELT/REELS
kW		 WEIGHT
kg		 CHAIN: PITCH-LINK-WHEEL-PIVOT
mm		 A
 B
 C x D
 E
 F
CAU-N 310 5-50 0,75 / 3 2750 150 45 x 12 ø78 ø20 1385 3800 800 x 600 2200 2100
CAU-N 410 5-50 1,1 / 3 3300 150 45 x 12 ø78 ø20 1385 4700 800 x 600 2300 2900
CAU-N 510 5-50 1,5 / 3 3850 150 45 x 12 ø78 ø20 1385 5750 800 x 600 2300 3900
CAU-N 610 5-50 1,5 / 3 4400 150 45 x 12 ø78 ø20 1385 6800 800 x 600 2300 4950
CAU-N 710 5-50 2,2 / 3 4950 150 45 x 12 ø78 ø20 1385 7850 800 x 600 2300 6000
CAU-N 810 5-50 3 / 3 5600 150 60 x 12 ø78 ø25 1385 8900 800 x 600 2400 7050

CAU-N 312 7-65 1,1 / 3 3050 150 45 x 12 ø78 ø20 1585 3800 1000 x 600 2400 2100
CAU-N 412 7-65 1,5 / 3 3600 150 45 x 12 ø78 ø20 1585 4700 1000 x 600 2500 2900
CAU-N 512 7-65 2,2/3 4150 150 45x12 ø78 ø20 1585 5750 1000x600 2500 3900
CAU-N 612 7-65 2,2 / 3 4700 150 45 x 12 ø78 ø20 1585 6800 1000 x 600 2500 4950
CAU-N 712 7-65 2,2 / 3 5300 150 45 x 12 ø78 ø20 1585 7850 1000 x 600 2500 6000
CAU-N 812 7-65 3 / 3 6100 150 60 x 12 ø78 ø25 1585 8900 1000 x 600 2600 7050

- Longer models can be produced -

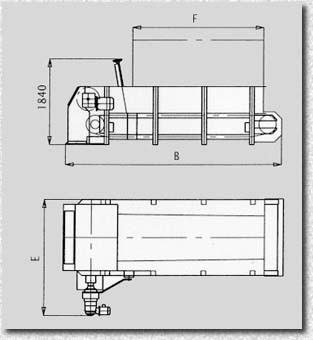

Overall Dimensions

Box Feeder type CAU-N - dimensions Box Feeder type CAU-N - dimensions

- The given data are not binding -
