Technical Data
| TYPE |
OUTPUT ton/h |
SCREW DIAMETER mm |
POWER EXTRUDER kW |
POWER FEEDING REELS kW |
WEIGHT kg |
| EV 125 | 0,3 | 125 | 4 | 0,18 | 550 |
| EV 175 | 2 | 175 | 9 | 0,25 + 0,25 | 1100 |
| EV 250 | 4 | 250 | 22 | 0,25 + 0,25 | 1700 |
| EV 350 | 15 | 350 | 45 | 1,1 + 1,1 | 4200 |

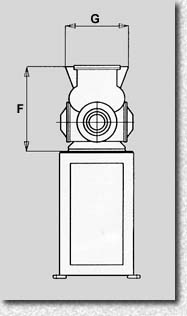

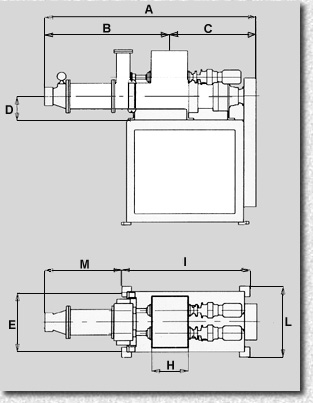

Overall Dimensions
 |
 |
| TYPE | A | B | C | D | E | F | G | H | I | L | M |
| EV 125 | 1550 | 720 | 830 | 150 | 400 | 500 | 390 | 300 | 930 | 480 | 300 |
| EV 175 | 2100 | 1665 | 1035 | 200 | 580 | 500 | 430 | 485 | 1470 | 670 | 1310 |
| EV 250 | 2500 | 1500 | 1000 | 280 | 680 | 800 | 600 | 420 | 1470 | 820 | 950 |
| EV 350 | 3300 | 1900 | 1400 | 350 | 1000 | 880 | 700 | 530 | 2320 | 920 | 850 |
- The given data are not binding
