Roller mill type "LM"
BRICK WORKS and REFRACTORIES
POTTERY

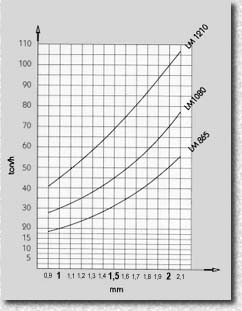

Technical Data TYPE CILINDERS DIMENSIONS mm POWER kW WEIGHT kg LM 865 800 x 650 55 + 37 12500 LM 1080 1000 x 800 75 + 55 16000 LM 1210 1200 x 1000 110 + 75 24000

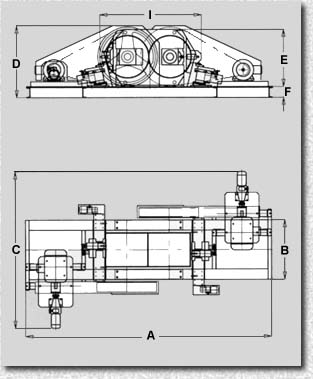

Overall Dimensions

	TYPE LM 865 LM 1080 LM 1210 A 5200 5800 6500 B 1150 1410 1690 C 3250 3710 4180 D 1400 1700 2080 E 1100 1355 1640 F 240 260 280 G 1500 2050 2650 H 950 1170 1410 I 1900 2390 2900

- The given data are not binding -
