Technical Data
| TYPE |
OUTPUT ton/h |
SCREW DIAMETER mm |
POWER MIXER kW |
POWER EXTRUDER kW |
POWER FEEDING REELS kW |
WEIGHT kg |
| LVR 250 | 4 | 250 | 11 | 15 | 0,37 x 4 | 3600 |
| LVR 350 | 15 | 350 | 22 | 37 | 0,75 x 4 | 5800 |

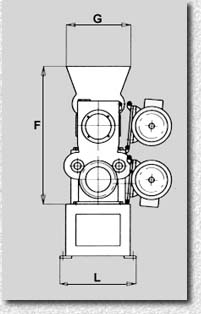

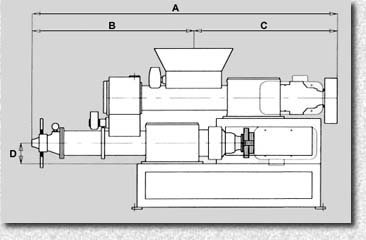

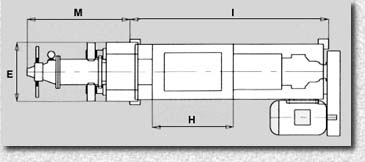

Overall Dimensions
 |
 |
 |
| TYPE | A | B | C | D | E | F | G | H | I | L | M |
| LVR 250 | 3600 | 1850 | 1750 | 250 | 700 | 1325 | 600 | 650 | 2320 | 770 | 1135 |
| LVR 350 | 4600 | 2400 | 2200 | 350 | 880 | 1800 | 800 | 900 | 3000 | 1050 | 1500 |
- The given data are not binding -
