Metal belt conveyor type "TP"
BRICK WORKS and REFRACTORIES
CEMENT FACTORIES
POTTERY

Metal belt conveyor type TP


Technical Data

TYPE TP-400 TP-500 TP-600 TP-700 TP-800 TP-1000
CAPACITY FOR HOUR (m3) 15 - 20 20 - 30 30 - 40 40 - 50 50 - 70 70 - 100
SPEED BELT (m/min) 12 12 12 12 12 12
WEIGHT PER METER (kg) 115 120 125 130 150 215

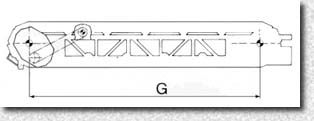

Overall Dimensions

Metal belt conveyor type TP - dimensions Metal belt conveyor type TP - dimensions



TYPE TP-400 TP-500 TP-600 TP-700 TP-800 TP-1000
A 400 500 600 700 800 1000
B 675 775 875 975 1075 1275
C 440 490 540 590 640 740
D 700 750 800 870 920 1060
E 1140 1240 1340 1460 1560 1800
F 650 650 650 650 650 850
G As requested
